Centrifugal Dryer

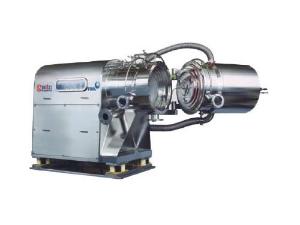

Capable of finishing separation, drying and sterilization jobs, the SFD centrifugal dryer is actually a multifunctional dryer that is particularly suitable for the production of high-activity chemicals, pharmaceutical intermediates, toxic materials, oxidizing materials and drugs that must be fabricated in aseptic conditions.

Quality Control
This spin dryer is manufactured using advanced German technology, and the entire production process is guided, supervised and inspected by German experts. Moreover, our engineering technicians and front-line workers are trained by German company, and key components are introduced from Germany to ensure their reliable performance.

Technical Data of Centrifugal Dryer
Model SFD-400 SFD-600 SFD-800 SFD-1000 SFD-1300
Basket diameter (mm) 400 600 800 10C0 1300
Max. filling volume (L) 20 63 125 235 800
Filter area (m2) 0.38 0.85 1.26 1.89 2.4
Rotating speed (r/min) 1640 1340 1160 1040 900
C-factor 601 602 602 606 600
Machine size (mm) 3200×1400
×1700
3400×1600
×1900
3900×1800
×2400
4000×1800
×2500
5600×2000
×2800
Weight (kg) 3500 4300 9500 11500 20500

Advantage
Our centrifugal dryer is a hot selling product on the global market, and that is resulted from its superior properties as listed below.
1. Integrated design
2. No cross contamination
3. Efficient program control
4. Total discharge
5. Multifunction
6. Good reliability
7. Compact structure
8. Sterile design
9. Online monitoring
10. No damage to solids
11. Highly flexible running

Sterile Design
Among the abovementioned features, sterile design deserves our special attention because this factor enables our industrial centrifugal dryer to offer excellent drying result without contaminating final products.
1. Hermetically sealed housing
2. Compatible with vapor sterilization
3. No dead angle inside (better washing)
4. No screw connection
5. Automatic control system
6. Automatic running of SIP (Sterilization In Place) system
7. Special sealing system

Application
As a result of its outstanding properties, our centrifugal dryer is widely used in chemical, pharmaceutical, food, and bioengineering industries.
