Granulator, Grinding Equipment

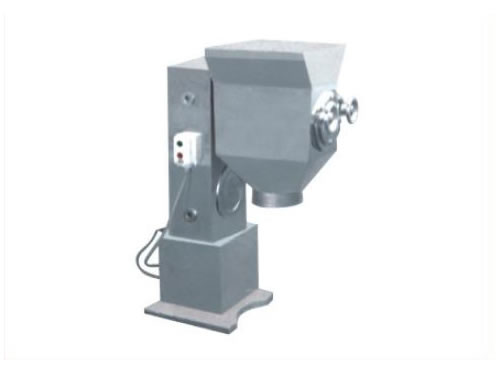

The YK-160A granulator is an oscillating granulation machine with bottom discharge, and it is mainly used for particle granulation or disintegration.

Technical Data of YK-160A Granulator
Production capacity Dry goods (kg/h) 200-300
Wet goods (kg/h) 500-700
Scraping axle Diameter (mm) 160
Teeth number 8
Rotation angle (°) 360
Oscillating number 65
Motor Model Y90L-485
Power (kW) 1.5
Speed (rpm) 1500
Machine size (mm) 780L×440W×116H
Machine weight (kg) 370

Feature
With simple structure and small footprint, this oscillating granulator is able to offer reliable performance, and it allows convenient maintenance.

Application
This rotating granulator is a great partner for food, chemical and pharmaceutical industries where granulation or disintegration is needed.

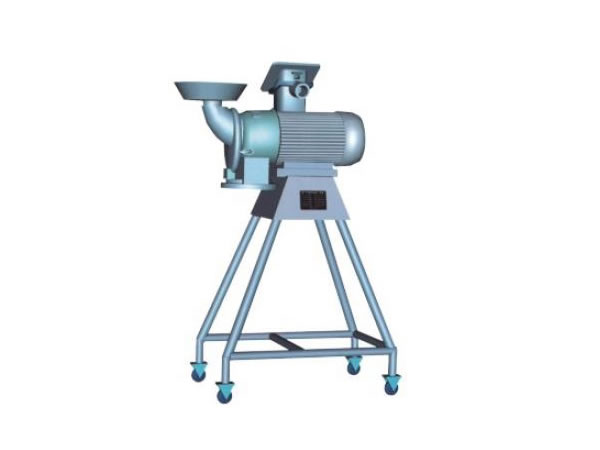

The WDF-170 grinding equipment is intended for the disintegration of solid materials and the emulsification of liquid materials. This disintegrating mill is mainly used in chemical and pharmaceutical industries.

Technical Data of WDF-170 Grinding Equipment
Rotation diameter (mm) 170
Frequency (Hz) 50
Noise level <80db(a)
Smashing speed (rpm) 2880
Production capacity (kg/h) 100-250
Feeding size 20-40 mesh
Discharging size 40-120 mesh
