Pressure Vessel

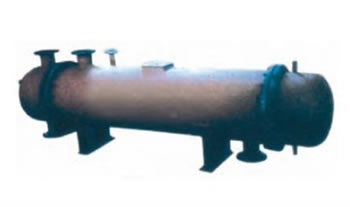

  • GF Series Floating Head Heat Exchanger
  • Chemical Container

Our pressure vessel is available in different types, and it is applicable for flammable media, moderately toxic media and highly toxic media.

Technical Data
1. Design pressure: ≤10MPa for the tank, ≤10MPa for the jacket
2. Design temperature: ≤400°C for the tank, ≤400°C for the jacket
3. Pressure vessel type: Class 1, Class 2, Class 3

Installation Size of Pressure Vessel
Volume 100 200 300 500 1000 1500 2000 2500 3000
D 600 700 800 900 1200 1200 1400 1400 1400
D1 700 800 900 1000 1300 1300 1500 1500 1500
D2 828 948 1048 1148 1487 1487 1730 1730 1730
DO 450 500 550 580 750 750 900 900 900
H 500 700 800 1000 1640 1640 1500 1800 2200
H1 210 256 290 315 419 419 434 434 434
H2 780 780 1010 1010 1137 1137 1137 1137 1137
L 1600 1880 2266 2470 3380 3380 3560 3960 4360

Note: These data are subjected to change without prior notice.

Ordering Instruction
1. Please specify in the contract if desired working pressure, working temperature and working media are beyond this instruction.
2. Please specify in the contract if required speed reducer and stirrer are different from standard ones listed in this instruction.
3. Pressure gauge and temperature meter shall be equipped to our pressure vessel by customers.
4. Stainless steel tanks with volume of 2000L or higher are closed containers.

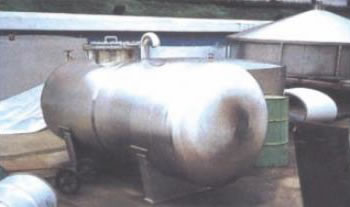

Pressure Vessel
