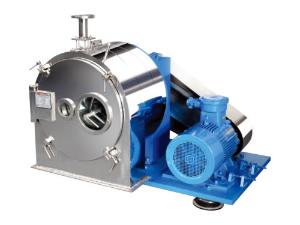

Screen Scroll Centrifuge

The LWL screen scroll centrifuge is a horizontal, continuously working machine with a screw conveyor for continuous solids discharge, and it is used for separating solid-liquid mixtures with solid phase grains ranging from 0.05mm to 10mm in size. This filtering centrifuge is a great partner for food, chemical, metallurgical, pharmaceutical and light industries.

Main Characteristics of Screen Scroll Centrifuge
1. Continuous operation, spiral discharging and high production capacity
2. High dehydration rate, good washing result and high separation efficiency
3. Compact structure for easy operation and maintenance

Technical Data of Screen Scroll Centrifuge
Model LWL- 200 ×160 LWL- 320 ×198 LWL- 350 ×300 LWL- 450 ×300 LWL- 530 ×350 LW- 630 ×465 LW- 750 ×790 LW- 800 ×500 LW- 1000 ×650
Basket diameter (mm) 200 320 350 450 530 630 750 800 1000
Basket length (mm) 160 198 300 300/360 350 465 790 500 650
Max. speed (r/min) 4000 3000 3000 2600 2000 1850 2100 1500 1000
Max. separating factor 1790 1609 1762 1702 1185 1205 1848 1008 560
Speed difference between drum and spiral 18 26 30 30 23 24 23 24 24
Motor power (kW) 3 7.5 15 22 30 37 75 75 90
Dimensions (mm) 940
×800
×900
1225
×1115
×1040
1550
×1289
×1325
1570
×1450
×1400
1720
×1700
×1581
1810
×1880
×1720
2610
×2115
×2000
2700
×2100
×1700
3000
×2170
×2100
Weight (kg) 250 720 1450 1600 2800 3800 6500 6000 7600
Processing capability (m3/h) 0.5-1.5 1.5-6 3-16 3-18 6-20 4-30 15-50 8-30 15-50

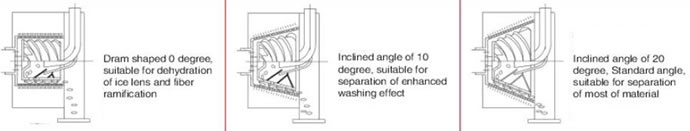

Specially Designed Spiral Parts
The worm screen centrifuge can be bucket or cone shaped, and according to actual production needs, its spiral can be adjusted at different angles to regulate discharging speed as well as the time period that filter cakes stay on the screen.

Material Option
For the screen scroll centrifuge, its wet parts can be manufactured from austenitic stainless steel (321, 316L, etc.), Hastelloy, titanium alloy or other corrosion resistant materials.

Optional Configuration
Our conveyor discharge centrifuge may come with several optional devices if requested, including but not limited to:
1. Frequency converter and PLC controller
2. Monitoring system for vibration and temperature rise of main bearing
3. Feeding speed controller
4. Gas-liquid separation device on liquid outlet

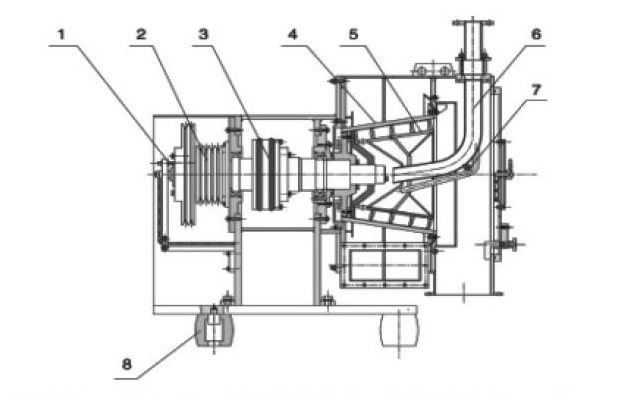

Structure of Screen Scroll Centrifuge
1. Safety Device
2. Belt Pulley
3. Differential Mechanism
4. Basket
5. Spiral
6. Feed Pipe
7. Wash Pipe
8. Shock Absorber
