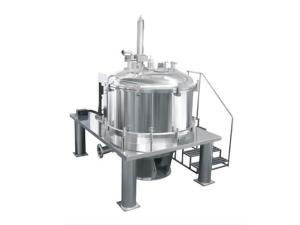

The L(P)LGZ automatic shaking bag centrifuge has all the advantages that a common vertical bottom discharge scraper centrifuge boasts. With a frequency converter, it realizes fully automatic operation, and either its cover or its housing can be opened according to customer needs.
During work, the filter bag is moved up and down vigorously inside the drum to offer an oscillation effect for the removal of residual heel, and this automatic centrifuge could be fitted with an optional residual heel removal system for better performance. In addition, this residual heel removal system has gained national patent in China.
Technical Data of L(P)LGZ Automatic Shaking Bag Centrifuge| Model | |
|
|
|
| Drum diameter (mm) | 800 | 1COO | 1250 | 1600 |
| Drum height (mm) | 400 | 420/580 | 500/630 | 800/720 |
| Drum volume (L) | 100 | 110/190 | 310/400 | 800/720 |
| Loading capacity (kg) | 130 | 140/250 | 400/520 | 1000/870 |
| Max. speed (r/min) | 1500 | 1080/1200 | 1000/1200 | 850 |
| Max. separating factor | 1007 | 652/805 | 696/1006 | 646 |
| Motor power (kW) | 7.5 | 15 | 18.5/22 | 37 |
| Machine size with shock absorber (mm) | 1700×1400 ×2350 |
2100×1600×2340/ 2100×1600×2600 |
2300×1800×2400 | 3000×2400×3100 |
| Weight (kg) | 2100 | 3600/3900 | 5600 | 12000 |

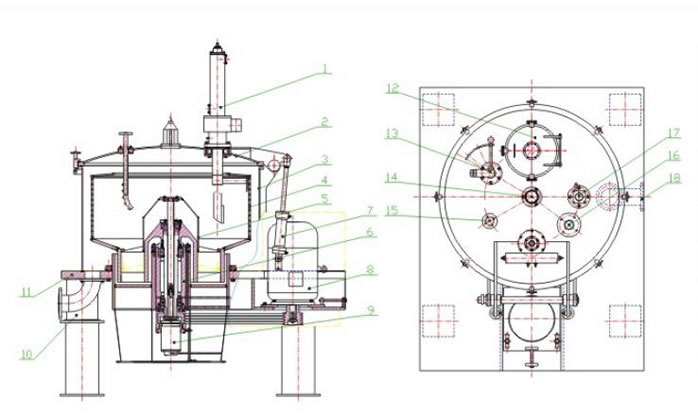

| 1. Scraper Cylinder 2. Cover 3. Housing 4. Drum 5. Supporting Jacket for Filter Bag 6. Bearing Seat |
7. Oil Cylinder for Cover Opening 8. Motor 9. Oil Cylinder for Filter Bag 10. Shock Absorber 11. Base Plate 12. Manhole |
13. Liquid Skimming Device 14. Explosion-proof Light 15. Wash Pipe 16. Feed Pipe 17. Fill Level Controller 18. Water Outlet Pipe |
