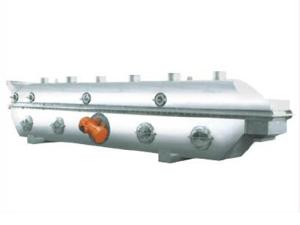

Vibratory Fluid Bed Dryer

Main Characteristics
1. The vibratory fluid bed dryer offers full heat exchange and uniform drying result, and it saves about 30% energy when compared with common dryers.
2. Vibration is created by an electric motor, and this motor is characterized by stable running, low noise, easy maintenance and long service life.
3. Our vibrating fluid bed dryer is able to work stably without dead angle or other problems.
4. The raw material width and thickness as well as its movement and amplitude can be steplessly controlled.
5. This vibratory fluidized dryer does little or no damage to material surface, making it particularly suitable for the drying of fragile materials. In addition, it will deliver satisfying performance even when granules are not in regular shape.
6. Thanks to its fully enclosed structure, our vibratory fluid bed dryer prevents cross contamination between raw materials and ambient environment.

Size and Weight of Vibratory Fluid Bed Dryer
Model A B C D E F Weight
TGZL3×0.30 3000 300 1350 900 430 1650 1250
TGZL4.5×0.30 4500 300 1350 900 430 1650 1560
TGZL4.5×0.45 4500 450 1550 950 430 1700 1670
TGZL4.5×0.60 4500 600 1660 950 430 1700 1910
TGZL6×0.45 6000 450 1660 950 430 1700 2100
TGZL6×0.60 6000 600 1700 1000 500 1700 2410
TGZL6×0.75 6000 750 1850 1000 600 1850 2340
TGZL6×0.9 6000 900 2000 1000 600 1850 3160
TGZL7.5×0.6 7500 600 1850 1000 600 1850 3200
TGZL7.5×0.75 7500 750 2000 1000 600 1850 3602
TGZL7.5×0.9 7500 900 2100 1000 600 1850 4140
TGZL7.5×1.2 7500 1200 2500 1500 800 2050 5190
Technical Data of Vibratory Fluid Bed Dryer
Model Fluid bed area (m2) Inlet air temperature (°C) Outlet air temperature (°C) Evaporated moisture (kg/h) Vibrating motor
Model Power (kw)
TGZL3×0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2
TGZL4.5×0.30 1.35 70-140 40-70 35-50 ZDS31-6 0.8×2
TGZL4.5×0.45 2.025 70-140 40-70 50-70 ZDS32-6 1.1×2
TGZL4.5×0.60 2.7 70-140 40-70 70-90 ZDS32-6 1.1×2
TGZL6×0.45 2.4 70-140 40-70 80-100 ZDS41-6 1.5×2
TGZL6~0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5×2
TGZU6-0.75 4.5 70-140 40-70 120-140 ZDS42-6 2.2×2
TGZL6~0.9 5.4 70-140 40-70 140-170 ZDS42-6 2.2×2
TGZL7.5-0.6 4.5 70-140 40-70 130-150 ZDS42-6 2.2×2
TGZL7.5~0.75 5.625 70-140 40-70 150-180 ZDS51-6 3.7×2
TGZL7.5-0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.7×2
TGZL7.5-1.2 9 70-140 40-70 200-260 ZDS51-6 3.7×2

Application Fields
1. Chemical and pharmaceutical: Pelletized granules like boric acid, benzenediol, malic acid, maleic acid, etc.
2. Food and construction material: Monosodium glutamate, edible sugar, chicken essence, edible salt, mine residue, seeds, etc.
3. Our fluid bed dryer also fits for cooling and humidifying operations.
