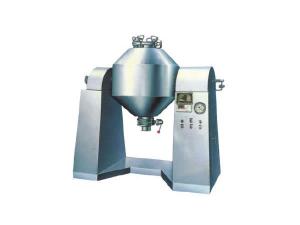

The SZG rotary vacuum dryer finishes material mixing and drying in one chamber, and it is equipped with condenser and vacuum pump.
Feature
1. Scientifically designed and meticulously crafted, our rotary dryer is easy to operate, and its simple structure helps to realize easy cleaning and complete discharging. In addition, labor intensity is also reduced.
2. As the drum rotates, materials will rotate along drum walls without sticking to them. So, good heat transfer is realized, resulting in lower power consumption but better drying result.
3. This drying equipment is compliant with GMP directives.
| Model | Volume (L) | Heat area (m2) | Motor power (kW) | Machine size (mm) | Machine weight (kg) |
| 50 | 0.8 | 0.75 | 1800×600×1555 | 2550 | |
| 100 | 1.1 | 0.75 | 2162×900×1755 | 800 | |
| 200 | 1.8 | 0.75 | 2212×800×1950 | 1000 | |
| 350 | 2.3 | 0.75/1.1 | 2262×900×2220 | 1100 | |
| 500 | 2.8 | 1.5 | 2350×800×2270 | 1200 | |
| 750 | 3.9 | 2.2 | 2662×1000×2490 | 1480 | |
| 1000 | 5.1 | 3 | 2858×1300×2630 | 2800 | |
| 1500 | 6.5 | 4 | 3062×1300×2940 | 3300 | |
| 2000 | 8.2 | 5.5 | 3262×1400×2990 | 3580 | |
| 3000 | 10.2 | 7.5 | 3762×1800×3494 | 5960 | |
| 5000 | 18.2 | 15 | 4280×2490×3730 | 9960 |
Application
Our vacuum dryer fits for drying and mixing powder/granule in food, chemical and pharmaceutical industries, and it is particularly suitable for the following materials:
1. Heat sensitive materials that can’t withstand high temperature
2. Oxidizing materials
3. Materials that produce toxic gases or where the solvent needs to be recycled
4. Materials that should contain little volatile matters
5. Materials that should be mixed evenly and completely
Working Parameters of Rotary Vacuum Dryer
1. Working pressure: -0.09MPa~0.096MPa (≤0.3MPa inside the tank)
2. Working medium: Crystal or non-adhesive granules for the tank, hot water or steam for the jacket
3. Jacket temperature: ≤140°C
4. Feeding capacity: 20%-50% of tank volume
5. Tank rotation speed: 3-12r/min
