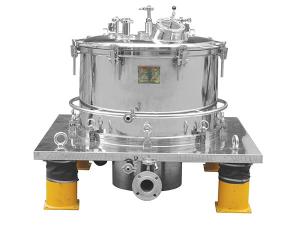

The L(P)BF hermetically sealed centrifuge is a kind of vertical centrifuge suitable for hygienic and highly efficient production. It could separate clean/pure solids out from various solid-liquid mixtures, and it fits perfectly for food, pharmaceutical and fine chemical applications.
Main Characteristics of Hermetically Sealed Centrifuge
1. All the components that will come into contact with liquid are constructed from stainless steel to ensure hygienic filtration.
2. The cover can be turned over for more than 90 degrees so as to expose the drum completely. In this way, it is very convenient for operators to clean internal parts and change filter cloth.
3. When it comes to transmission system of this top discharge centrifuge, its motor and transmission belt are well sealed by two independent covers, and there is a dedicated gas outlet to avoid the generation of dust which is often caused by the abrasion of belt.
| Model | |
|
|
|
| Drum diameter (mm) | 600 | 800 | 1000 | 1250 |
| Drum height (mm) | 350 | 400 | 420 | 500 |
| Drum capacity (L) | 45 | 90 | 140 | 320 |
| Max. feeding (kg) | 68 | 135 | 200 | 400 |
| Drum speed (r/min) | 1600 | 1200/1500 | 1080/1200 | 1000 |
| Max. separating factor | 860 | 645/1007 | 652/805 | 698 |
| Motor power (kW) | 3 | 5.5/7.5 | 11 | 18.5 |
| Machine size (mm) | 1800×1200×1030 | 2000×1400×1085 | 2650×1600×1375 | 2900×1900×1505 |
| Weight (kg) | 1500 | 2300 | 3200 | 5300 |
Structural Option
1. The cover can be opened in two ways: by controlling the reduction box manually, or by a hydraulic cylinder
2. Stainless steel shock absorber
3. Filtering medium: Sintered plate (imported)
4. CIP system
5. Small lid on the top of housing

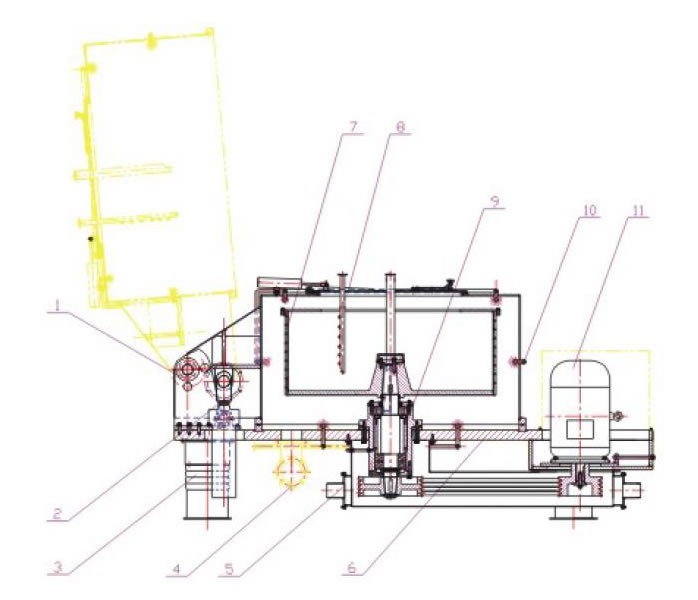

| 1. Turnover Mechanism 2. Oil Cylinder for Turnover Mechanism 3. Shock Absorber 4. Liquid Outlet |
5. Belt cover 6. Chassis 7. Drum 8. Small Lid |
9. Bearing Seat 10. CIP System 11. Main Motor |
