The L(P)XG peeler centrifuge with vacuum suction is a vertical top discharge centrifuge developed on the basis of L(P)GZ series. A vacuum suction device is set on the cover, and it helps to transfer scraped products to the outside of the centrifuge during discharging process.
Technical Data of Peeler Centrifuge with Vacuum SuctionModel | |
|
|
|
|
|
Drum diameter (mm) | 800 | 1000 | 1200 | 1250 | 1500 | 1600 |
Drum height (mm) | 400 | 420 | 500 | 630 | 700 | 800 |
Drum volume (L) | 100 | 140 | 260 | 400 | 570 | 800 |
Loading capacity (kg) | 130 | 180 | 320 | 520 | 740 | 1000 |
Drum speed (r/min) | 1500 | 1080 | 970 | 1000 | 850 | 850 |
Max. separating factor | 1007 | 652 | 631 | 698 | 605 | 646 |
Motor power (kW) | 7.5 | 15 | 18.5 | 18.5 | 30 | 37 |
Weight (kg) | 2100 | 3600 | 4450 | 5500 | 10850 | 12600 |
Main Characteristics of Peeler Centrifuge with Vacuum Suction
1. Optimized functions for efficient and reliable working
2. Perfect seal for bearing seat
3. Low labor intensity and better working environment
4. Minimal residual heel

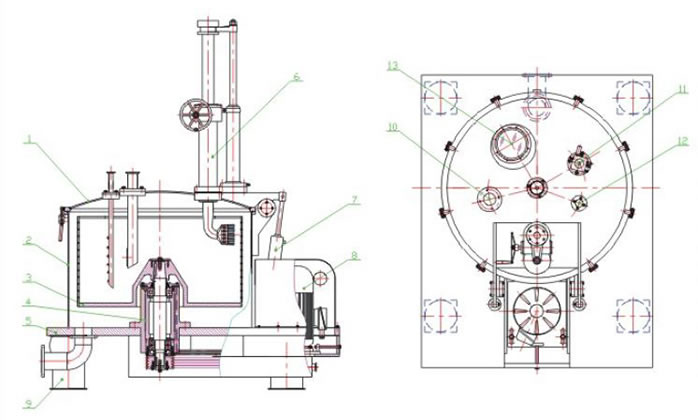

1. Cover 2. Housing 3. Drum 4. Bearing Seat 5. Chassis |
6. Vacuum Suction Device 7. Cover Opening Device 8. Transmission Parts 9. Shock Absorber |
10. Feed Pipe 11. Fill Level Controller 12. Wash Pipe 13. Sight Glass |
