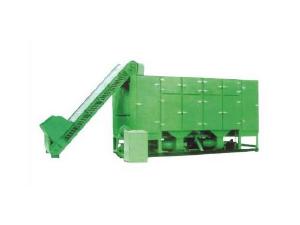

Cross Flow Dryer

As a continuous drying machine, the TGWC cross flow dryer is commonly adopted for the dewatering of traditional Chinese medicine, aquatic product, agricultural product, feed stuff and chemical material regardless of their shape (granule, pellet, strip, cake, etc.).

Main Characteristics
1. As indicated by its name, our continuous flow dryer is able to work continuously with easy operation, thus offering high production capacity with little labor cost.
2. The contact area between materials and hot air is very large, and materials are automatically turned over during work. As a result, fast and uniform drying is realized.
3. For this continuous cross flow dryer, its conveyor adopts stepless speed regulation, and its working time is adjustable.
4. During working process, all materials are dried continuously in one chamber, and they will be cooled later to avoid cross contamination.

Technical Data of Cross Flow Dryer
Model TGWC-25 TGWC-35 TGWC-55
Heating room number 2 3 5
Material spreading area (m2) 25 35 55
Working pressure of steam (MPa) 0.4-0.5 0.4-0.6 0.4-0.7
Cycle time (min) 22-220 45-450 60-600
Moisture removal capacity (kg/h) 70-220 100-330 170-550
Installed power (kW) 12.78 15.78 24.78
Gross weight (kg) 6500 9500 15000
Machine size (mm) 9875×2408×3385 11475×2408×3385 14675×2408×2285
