The LSD upper shaking bag centrifuge is developed from L(P)GZ centrifuge, and it has a bag shaking device on the cover. After separation is finished, this bag shaking device will act to make the filter bag oscillate, and then under the effect of their gravity, finished solids will be discharged through a hole at the bottom of the drum.
Technical Data of LSD Upper Shaking Bag Centrifuge| Model | |
|
|
|
| Drum diameter (mm) | 800 | 1000 | 1250 | 1600 |
| Drum height (mm) | 400 | 420 | 500 | 800 |
| Drum volume (L) | 90 | 140 | 260 | 800 |
| Loading capacity (kg) | 120 | 180 | 320 | 1000 |
| Max. speed (r/min) | 1500 | 1080 | 1000 | 850 |
| Max. separating factor | 1007 | 652 | 698 | 646 |
| Motor power (kW) | 7.5 | 15 | 18.5 | 37 |
| Weight (kg) | 2100 | 3600 | 5500 | 12600 |
Main Characteristics of Upper Shaking Bag Centrifuge
1. This vertical centrifuge will not leave residual heel during work, and its optimal settings help to realize high efficiency and reliable performance.
2. With the help of our filtration centrifuge, labor intensity is greatly reduced, and there is little influence over the working environment.
3. During working process, this vertical basket bottom discharge centrifuge will not damage solid particles, making it extremely suitable for applications where high granular integrity is required.
4. The automatic residual heel removal system is provided upon request, and it has gained national patent.

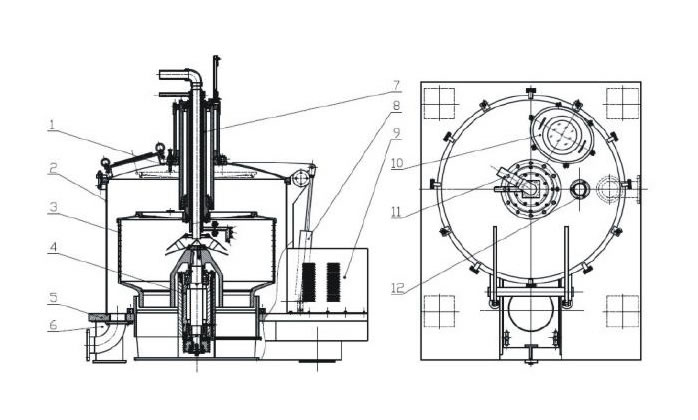

| 1. Cover 2. Housing 3. Drum 4. Bearing Seat |
5. Chassis 6. Shock Absorber 7. Bag Shaking Device 8. Cover Opening Device |
9. Transmission Parts 10. Sight Glass 11. Feed Pipe |
